🚜 Detachable Gooseneck Ag Trailers

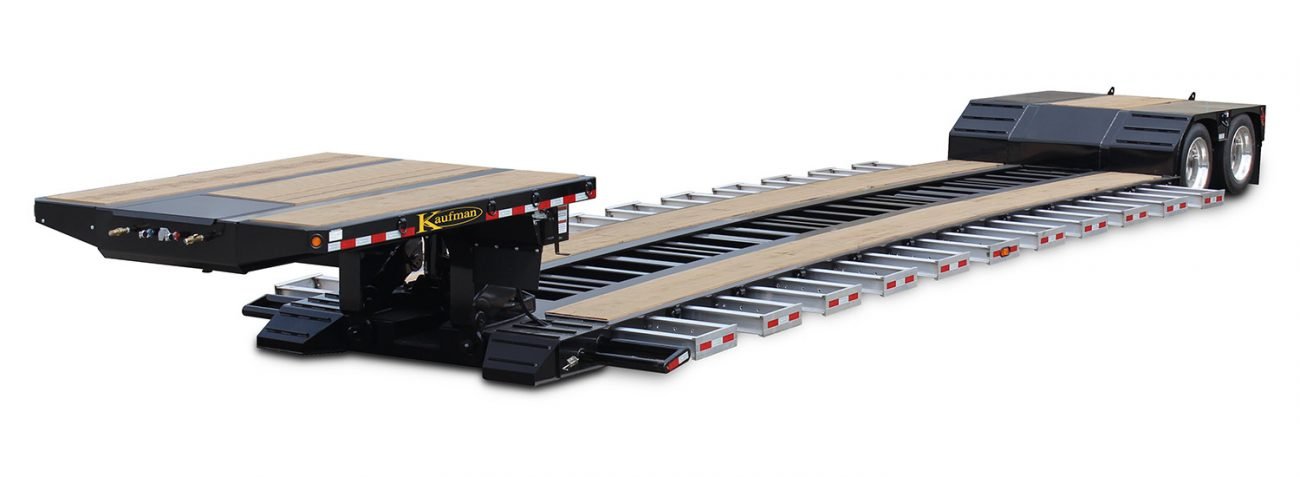

Detachable Gooseneck Ag Trailers (RGN/DGN) are heavy-duty, lowboy-style trailers built specifically for transporting large agricultural machinery such as tractors, combines, sprayers, and wide implements. Their unique design allows the front gooseneck to detach, letting equipment be loaded directly from ground level—making them much safer and easier to use than standard trailers.

🔧 Detachable Gooseneck System

The defining feature is the removable front neck, which:

• Detaches hydraulically or mechanically
• Lowers the trailer deck to ground level
• Allows drive-on / drive-off loading (no ramps needed)
• Can be reattached quickly after loading

This system greatly improves safety when handling heavy or oversized farm equipment.

🏗️ Heavy-Duty Construction & Capacity

These trailers are engineered for extreme loads and long-term durability, featuring:

• High-tensile steel main beams for strength
• Tandem or tri-axle configurations
• Air ride suspension for smoother transport
• Air brake systems with ABS for control

Typical models are designed to handle tens of thousands of pounds of equipment, making them suitable for large-scale agricultural operations.

📏 Low Deck Height & Expandable Width

Detachable gooseneck ag trailers are optimized for oversized equipment:

• Low deck height (around 18–24 inches loaded) for easy loading
• Standard width ~102″
• Expandable up to 150″+ with slide-out outriggers
• Wide, stable platform for large machinery

This design ensures safer transport and compliance when hauling wide farm equipment.

🚜 Agriculture-Focused Features

These trailers are purpose-built for farming needs and often include:

• Aluminum slide-out outriggers for extra width
• Hardwood or oak flooring for durability
• Multiple tie-down points (D-rings)
• Flat rear deck for implements
• Toolboxes and storage compartments

Some models also offer modular decks and wheel covers to increase usable space.

⚙️ Hydraulic vs Mechanical Options

There are different gooseneck systems available:

• Hydraulic Detach – Most common, easy one-person operation
• Mechanical Detach – Simpler system, lower maintenance
• Air-Assisted Systems – Adjustable ride height and smooth loading

Each option is designed to suit different operational needs and budgets.

📦 Common Configurations

• 35-ton (standard farm use)
• 40–50 ton (heavy equipment hauling)
• Well lengths: 26′, 30′, 33′+
• Deck-over-neck and low-profile variants
